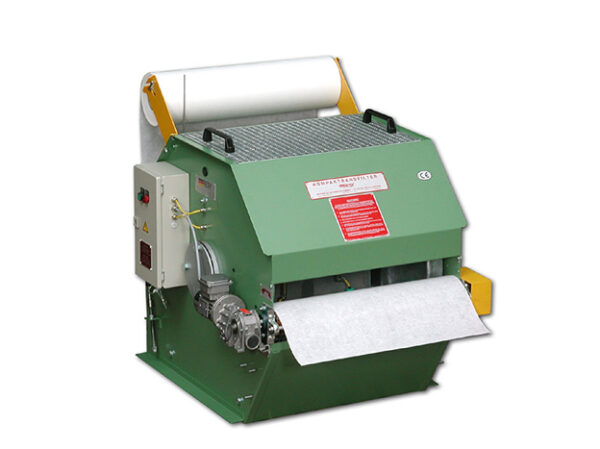

COMPACT BAND FILTER

•  Compact band filters well suited for high flow rate and dirt content.
•  specially designed for space efficiency and require only 20% of the space as compared to other conventional compact band filters Clarity level : 75 microns to 3 microns.
•  By using different grades of filter papers, the desired filtration effects can be achieved.
•  The optimum sealing between honeycomb mesh, drum assembly and filter paper completely eliminates any fear of contamination.

MODEL	CAPACITY	Inlet Height	FILTER PAPER WIDTH	DRUM DIAMETER	TANK CAPACITY
CB-DSLT	60 LPM	445 MM	600 MM	490 MM	200 LTRS
CB-DSLT	100 LPM	445 MM	700 MM	490 MM	300 LTRS
CB-DSLT	150 LPM	445 MM	800 MM	490 MM	450 LTRS
CB-DSLT	200 LPM	570 MM	800 MM	640 MM	600 LTRS
CB-DSLT	300 LPM	570 MM	1000 MM	640 MM	900LTRS
CB-DSLT	500 LPM	720 MM	1000 MM	840 MM	1500 LTRS
CB-DSLT	1000 LPM	770 MM	1500 MM	940 MM	2000 LTRS
CB-DSLT	2000 LPM	970 MM	1500 MM	1340 MM	3000 LTRS
